The Ultimate Excel Fix to Pivot Table Fields Not Showing

John Michaloudis
Pivot tables are one of Excel's most powerful tools.
They help us analyze data quickly and present it in a clear and concise way.

But, there are times when something goes wrong, like the dreaded moment when the Pivot Table Fields not showing.

Pivot tables are one of Excel’s most powerful tools. They help us analyze data quickly and present it in a clear and concise way. But, there are times when something goes wrong, like the dreaded moment when the Pivot Table Fields not showing.

If you’ve ever been in this situation, don’t worry—you’re not alone. I’ve faced this problem myself, and after some trial and error, I found out why it happens and how to fix it. In this article, I’ll walk you through all the possible reasons why your Pivot Table Fields not showing in Excel and how to resolve the issue. Let’s dive right in!

Key Takeaways:

  • Missing Pivot Table fields often result from a collapsed fields pane, an inactive Pivot Table, display settings, or even a corrupted workbook.
  • To restore the Pivot Table Fields list, click inside the Pivot Table, go to the PivotTable Analyze tab, and select the Field List option.
  • Right-clicking inside the Pivot Table and selecting Show Field List is a quick way to bring back the fields pane if it’s missing.
  • Excel add-ins or compatibility problems can interfere with the visibility of the Pivot Table Fields. Disabling unnecessary add-ins can often resolve these issues.
  • If all else fails, creating a new Pivot Table or repairing the workbook may be necessary. Updating or reinstalling Excel can also fix persistent issues with the application itself.



Introduction

The Frustration of Missing Pivot Table Fields

Ever faced the bewildering situation where you open an Excel workbook ready to crunch some data, only to find the critical Pivot Table fields missing? I know I have, and it can be quite frustrating. It’s like setting off on a road trip only to realize you’ve left your GPS at home – the trip can still happen, but the lack of navigation is a real hindrance.

Unlocking the Mystery: What to Do When Pivot Table Fields Vanish

When the Pivot Table fields pull a disappearing act, don’t fret; there’s a trusty set of tools right under our noses. Navigating Excel’s features to locate and resolve the issue can be likened to solving a good mystery. The trick lies in knowing when to take the right steps – and in what order.

Together, let’s explore how to become the Sherlock Holmes of Excel, deducing the reasons behind the enigma and restoring order to our spreadsheets.



Common Reasons Why Pivot Table Fields Not Showing

Before we start troubleshooting, it’s important to understand why this might be happening. Here are some common reasons:

  • The Fields Pane is Collapsed – The most common reason is that the Pivot Table Fields pane is simply hidden or collapsed.
  • No Active Pivot Table – If the pivot table isn’t selected, Excel won’t display the fields list.
  • Display Settings – Sometimes, Excel’s display settings or certain customizations might be causing the issue.
  • Corrupted File – Though rare, a corrupted Excel file can mess up how Pivot Table fields behave.

Now that we know what could be wrong, let’s fix it!



Quick Solutions to Restore Your Pivot Table Fields

Re-Enable the Pivot Table Fields List

Sometimes, the Pivot Table Fields pane gets accidentally closed. Here’s how I got it back:

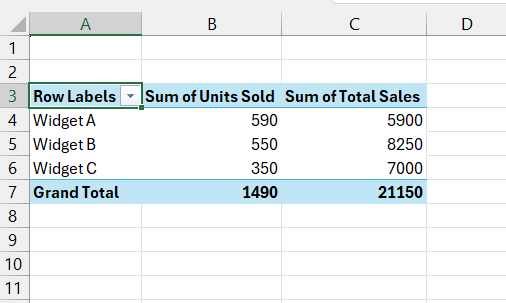

STEP 1: Click anywhere inside the pivot table to make it active.

Pivot Table Fields Not Showing

STEP 2: Then, navigate to the PivotTable Analyze (or Options) tab on the ribbon.

Pivot Table Fields Not Showing

STEP 3: Look for the Field List button on the far right and click it.

Pivot Table Fields Not Showing

This action should make the Pivot Table Fields list appear on the side of your screen. If it doesn’t, no need to panic, there are a few more things we can try!

Check If the Pivot Table is Active

One reason why the field list might not be showing is because the pivot table is not “active.” Here’s how I confirmed that:

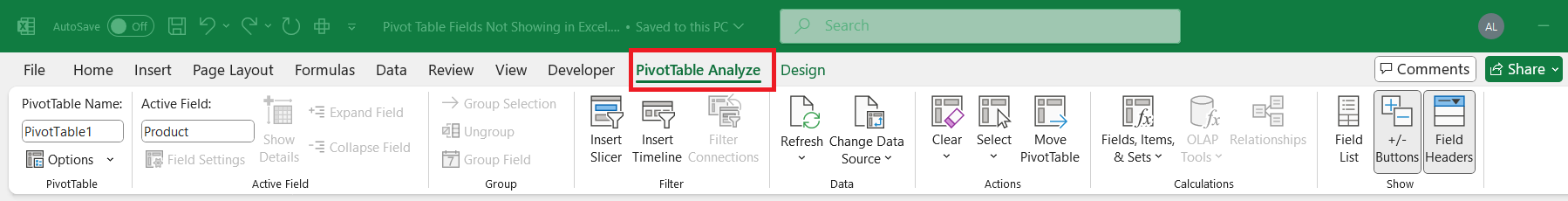

Simply click anywhere inside the pivot table. The moment you do, the PivotTable Analyze tab should appear in the ribbon.

Pivot Table Fields Not Showing

If the tab doesn’t appear, you might not be selecting the correct area. Double-check to make sure you’re clicking inside the actual pivot table, not in some blank cell nearby.

If the PivotTable Analyze tab shows up but the fields list still isn’t visible, it’s time to move on to the next step.

Unhide a Collapsed Pivot Table Fields Pane

Sometimes, the Pivot Table Fields pane doesn’t disappear but gets minimized or moved off-screen. Here’s how I fixed that:

When you click on your pivot table, keep an eye on the right side of your screen. If you notice a small arrow, click on it and select resize to expand the Pivot Table Fields list.

Pivot Table Fields Not Showing

This issue usually happens if you’ve been working on a dual monitor setup or have resized the Excel window in the past.

Use Right-click Option

If your Pivot Table Fields List is not showing and you want to bring it back using the right-click option, here’s a quick guide:

STEP 1: Once the pivot table is selected, right-click on any cell within the pivot table area.

Pivot Table Fields Not Showing

STEP 2: In the context menu that appears after right-clicking, click on Show Field List.

Pivot Table Fields Not Showing

After clicking, the Pivot Table Fields List should appear on the right-hand side of your screen, allowing you to customize your Pivot Table further by dragging and dropping fields.

Disable Add-ins or Check for Compatibility Issues

Sometimes, Excel add-ins or compatibility issues can interfere with how the Pivot Table Fields pane behaves. Here’s what I did to address this:

STEP 1: Go to File > Options > Add-ins.

Pivot Table Fields Not Showing

STEP 2: At the bottom of the window, make sure Excel Add-ins is selected from the drop-down menu, and click Go.

Pivot Table Fields Not Showing

STEP 3: Uncheck any add-ins you don’t need or recognize, then click OK.

Pivot Table Fields Not Showing

I’ve found that certain third-party add-ins, especially those related to data analysis, can mess with Excel’s default behavior. Disabling them temporarily helped me rule out whether they were causing the issue.

Repair a Corrupted Workbook

Although rare, a corrupted Excel workbook can cause weird behaviors like missing Pivot Table Fields. First, I closed the workbook and reopened it to see if the issue was just a temporary glitch. If that didn’t work, I saved a copy of the workbook and then performed a repair:

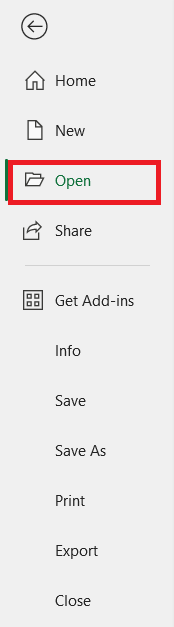

STEP 1: Go to File > Open and select the corrupted workbook.

Pivot Table Fields Not Showing

STEP 2: Select the file and click on the drop-down arrow next to the Open button and select Open and Repair.

Pivot Table Fields Not Showing



Create a New Pivot Table

When all else fails, sometimes creating a brand-new pivot table is the simplest solution. If the Pivot Table Fields still aren’t showing, there could be something wrong with that specific pivot table. Here’s what I did:

STEP 1: Go to Insert > PivotTable and choose the data range again.

Pivot Table Fields Not Showing

STEP 2: Build a new pivot table from scratch to see if the Fields list appears with the new one.

Pivot Table Fields Not Showing

This helped me confirm whether the issue was specific to one pivot table or a general Excel problem.

Update Excel or Reinstall It

If none of the above solutions work, the issue might be with Excel itself. I made sure my Excel was up-to-date by going to File > Account > Update Options and choosing Update Now. Keeping Excel updated fixes bugs and improves stability.

Pivot Table Fields Not Showing

If updating didn’t work, reinstalling Excel from my Microsoft 365 account gave me a clean slate, which solved the problem for good.



FAQ

Why is my PivotTable not showing fields?

Your Pivot Table might not show fields if they are missing from the data source or if the field list is minimized or closed. Ensure the data source includes all the desired fields and that the PivotTable is connected correctly. Sometimes, simply refreshing the PivotTable or extending the data source range can resolve the issue.

Why are my pivot table fields not showing even after refreshing?

If your pivot table fields are not showing after a refresh, it could indicate issues with the data range or filters applied. Double-check that the range includes all necessary columns and rows, and ensure no filters are inadvertently hiding the fields. Additionally, verify that the PivotTable is referencing the correct data source.

What should I do if changes in the source data cause fields to disappear?

When changes in the source data cause fields to disappear, first refresh your PivotTable to update its view. If issues persist, recheck the data range in the ‘Change Data Source’ settings to make sure it aligns with the updated source. Lastly, adjust the field settings to show items with no data.

Can resizing the field list area help reveal hidden fields?

Yes, resizing the field list area can often reveal hidden fields. It’s a bit like adjusting the rearview mirror in your car to get a better view; by dragging and readjusting the borders of the field list, you may uncover fields that were previously out of view. This simple action can sometimes make all the difference.

How do I show PivotTable fields in Excel?

To show PivotTable fields in Excel, click any cell within your PivotTable to bring up the PivotTable Tools in the ribbon. Then navigate to the ‘PivotTable Analyze’ tab, and in the ‘Show’ group, click on the ‘Field List’ toggle to bring up the field pane. If it’s hidden, this should make it reappear.
