Excel Slicer was first introduced in Pivot Tables in Excel 2010 for Windows and Excel 2016 for Mac.

Pivot Table Slicers are a visual filter in the form of an interactive button.  There are several cool things that you can do with Pivot Table Slicer, like customize them, filter them, connect them to multiple Pivot Tables plus much more!

Learn How to Create Interactive employee photos with Excel Slicer!

*** Watch our video and step by step guide below with a free downloadable Excel workbook to practice ***

Watch on YouTube and give it a thumbs up 👍

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline



1. Insert a Slicer

Excel Slicer is visual filter or interactive button that allow you to see what items have been chosen within a Pivot Table.

They are a new feature from Excel 2010 onward and Mac for Excel 2016 and a must for anyone wanting to wow their boss by adding interactivity in their reports!  I show you How to Use Slicer in Excel below:

DOWNLOAD EXCEL WORKBOOK

STEP 1: Select your Pivot Table by clicking anywhere inside it.

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline



STEP 2: Go to Options(Excel 2010)/Analyze(Excel 2013&2016) > Insert Slicer

Select the Month and Year Fields.

Click OK.

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

Your slicer is now ready!  Go crazy clicking, slicing and dicing your data!

TIP: Hold down the CTRL key to select multiple items in your Slicer.

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline



2. Different Ways to Filter an Excel Slicer

Excel Slicers are the best thing since sliced bread!

They are a new feature from Excel 2010 onward and Mac for Excel 2016 and are visual buttons that show you what items have been filtered or selected in a Pivot Table.

There are several ways that you can filter an Excel Slicer.

Try it now by downloading this free workbook:

DOWNLOAD EXCEL WORKBOOK

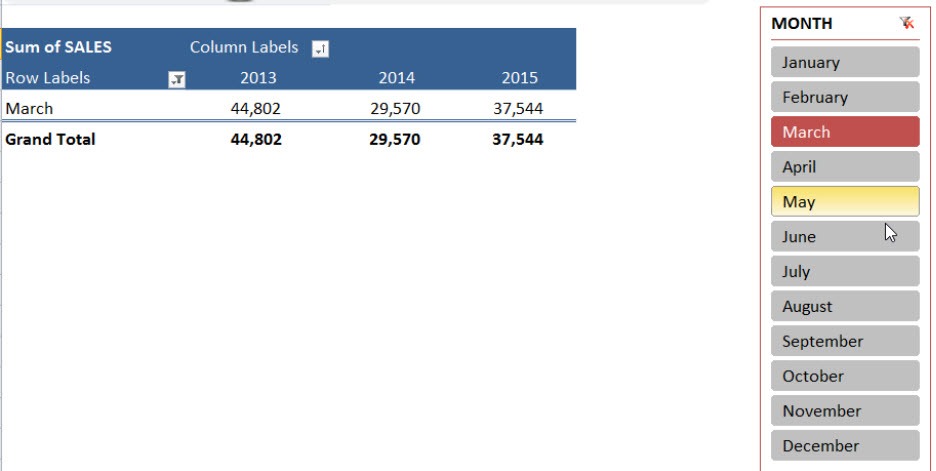

LEFT MOUSE CLICK: You can select items from the Slicer by using your left mouse button;The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline



DRAG LEFT MOUSE BUTTON: You can select an array of items by clicking the left mouse button and doing a dragging motion downwards/upwards within the Slicer;

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

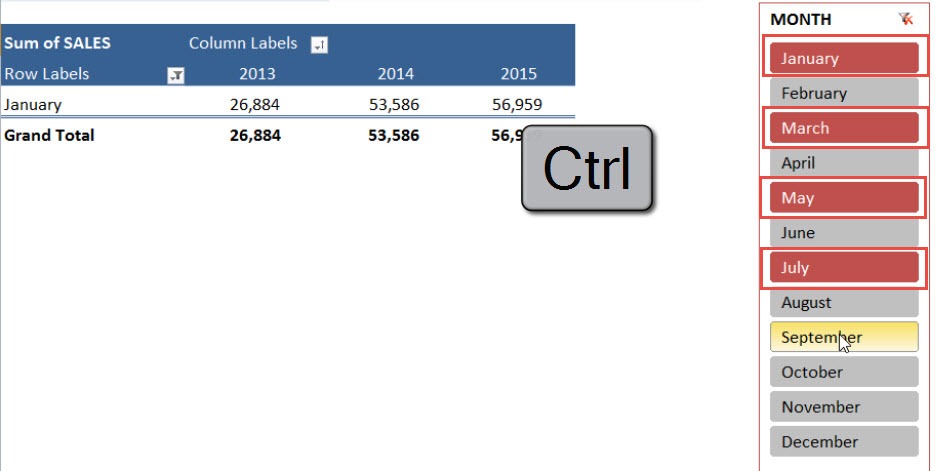

CTRL KEYBOARD: You can select multiple items by holding down the CTRL key on your keyboard;

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

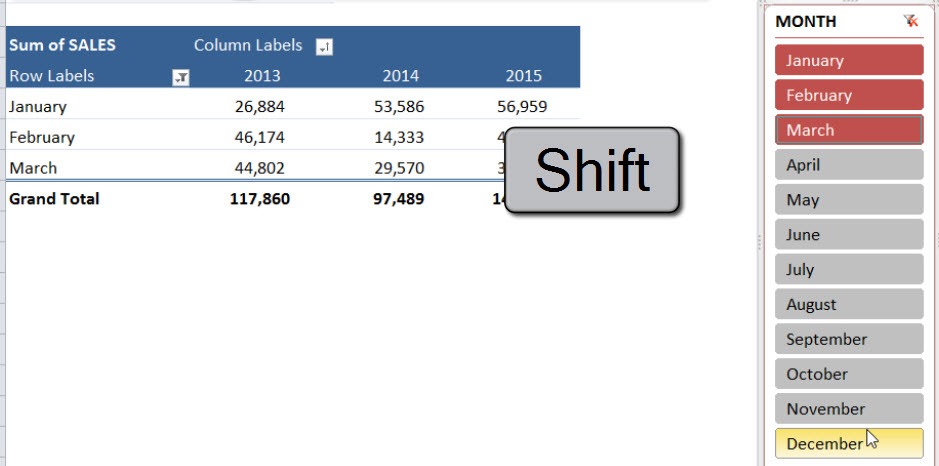

SHIFT KEYBOARD: You can select a range of items by holding down the SHIFT key on your keyboard!

excel slicer





3. Add Columns to Slicer Buttons

When you insert an Excel Slicer with your Pivot Table it defaults to one column, showing all your items in a vertical layout.

Say that your Slicer is showing months from January to December, you can change the layout of the buttons to show in 3 separate columns, turning it into a “Quarterly View”.

To do this you need to click on your Slicer and go to Slicer Tools > Options > Buttons > Columns.  You can then use the scroll bar to increase and decrease the columns or manually type in the number of columns to show your Slicer.

DOWNLOAD EXCEL WORKBOOK



STEP 1: Select your Slicer.

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

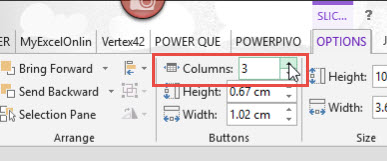

STEP 2: Go to Slicer Tools > Options > Buttons > Columns

Select Columns to 3.

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

Your slicer now has a 3-column layout!

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline



4. Slicer Styles & Settings

There are several different Slicer Styles available when you click on an Excel Slicer.  It is located in the Slicer Tools tab in the Ribbon under Options > Slicer Styles.  You can also add columns to a Slicer and you can find more Slicer options by Right Clicking in a Slicer.

DOWNLOAD EXCEL WORKBOOK

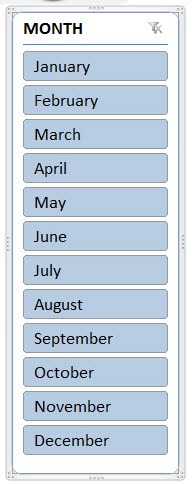

STEP 1: Select your Slicer.

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

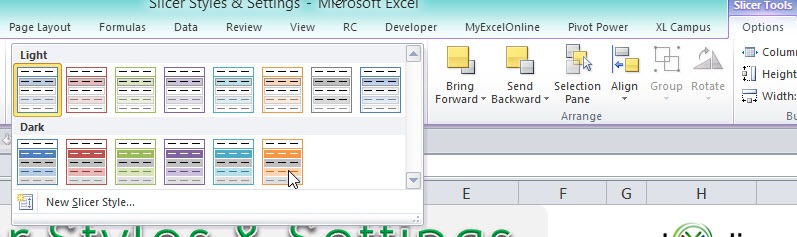

STEP 2: Go to Slicer Tools > Options > Slicer Styles

Select a style you prefer.

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

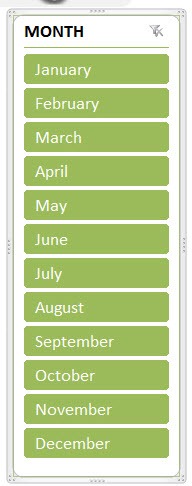

Your slicer now has a different style!

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline



5. Connect Slicers to Multiple Excel Pivot Tables

Normally when you insert an Excel Slicer it is only connected to the Pivot Table that you are inserting it from.

What about if you had multiple Pivot Tables from the same data set and wanted to connect a Slicer to all of the Pivot Tables, so when you press a button all the Pivot Tables change?

Well this is possible with the Report Connections (Excel 2013 & 2016) / PivotTable Connections (Excel 2010) option within the Slicer.  This is how it is achieved:

DOWNLOAD EXCEL WORKBOOK

STEP 1: Create 2 Pivot Tables by clicking in your data set and selecting Insert > Pivot Table > New Worksheet/Existing Worksheet

Setup Pivot Table #1:

slicer-01

ROWS: Region

VALUES: Sum of Sales

slicer-02

Setup Pivot Table #2:

slicer-03

ROWS: Customer

VALUES: Sum of Sales

slicer-04



STEP 2: Click in Pivot Table #1 and insert a MONTH Slicer by going to PivotTable Tools > Analyze/Options > Insert Slicer > Month > OK

slicer-05

slicer-06



STEP 3: Click in Pivot Table #2 and insert a YEAR Slicer by going to PivotTable Tools > Analyze/Options > Insert Slicer > Year > OK

slicer-07

slicer-08

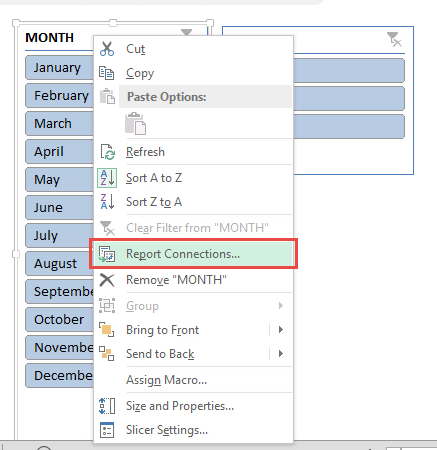

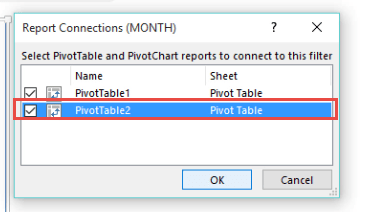

STEP 4: Right Click on Slicer #1 and go to Report Connections(Excel 2013 & 2016)/PivotTable Connections (Excel 2010) > “check” the PivotTable2 box and press OK

slicer-09

slicer-10

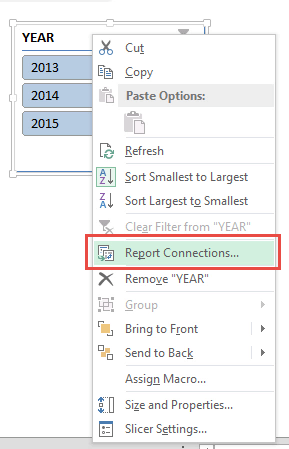

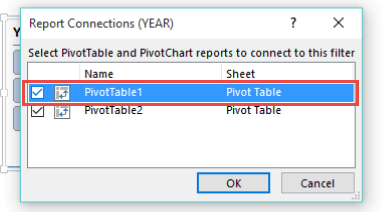

STEP 5: Right Click on Slicer #2 and go to Report Connections(Excel 2013)/PivotTable Connections (Excel 2010) > “check” the PivotTable1 box and press OK

slicer-11

slicer-12

Now as you select each Slicer’s items, both Pivot Tables will change!

Have a look at the following image and the tutorial below that to see how this is achieved using Excel 2013:

2015-11-03_15-54-54

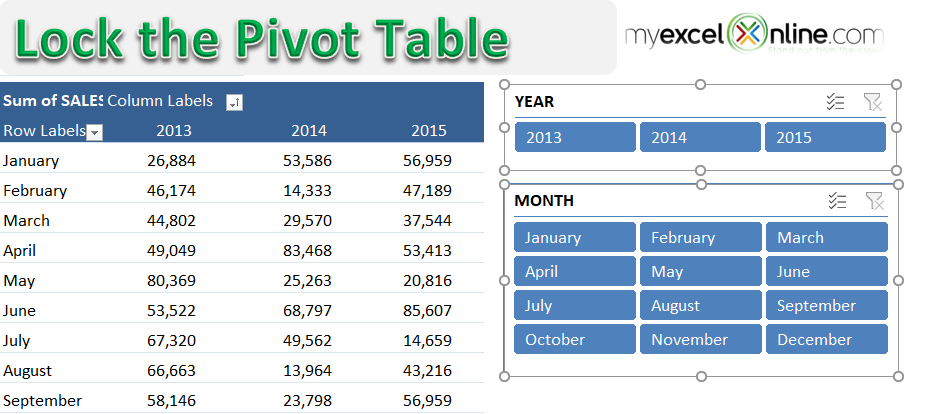

6. Lock The Excel Pivot Table But NOT The Slicer!

Sometimes when you are sharing an Excel Pivot Table with your colleagues you do not want the other user(s) to mess with your Pivot Table layout and format.

What you can do is lock the Pivot Table and only allow the user(s) to select the Slicers, making your report interactive and secure from Excel novices like your boss 🙂

Here is how you can lock the Pivot Table but not the Slicers:

DOWNLOAD UNLOCKED EXCEL WORKBOOK

DOWNLOAD LOCKED EXCEL WORKBOOK

(Password to unlock: myexcelonline)

STEP 1: Click on a Slicer, hold the CTRL key and select the other Slicers

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

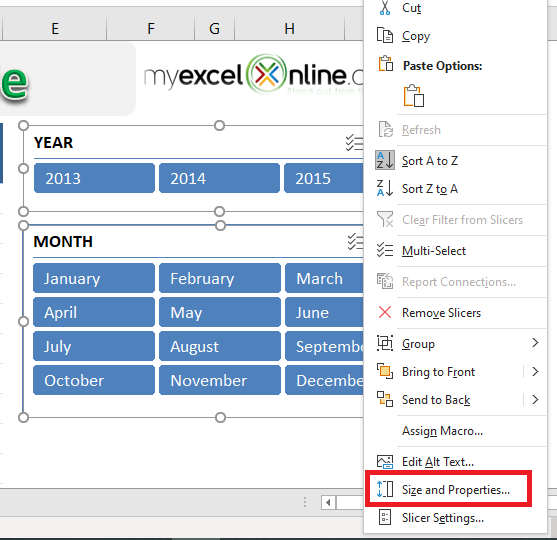

STEP 2: Right-click on a Slicer and select Size & Properties

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

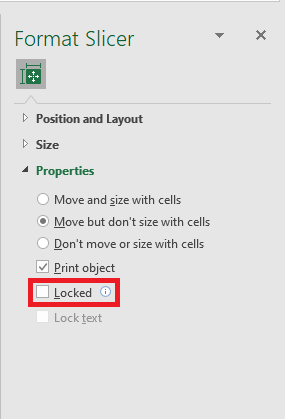

STEP 3: Under Properties, uncheck” the Locked box and press Close

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

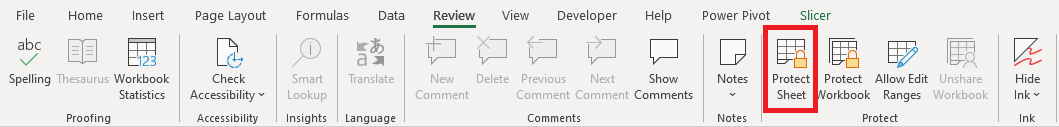

STEP 4: Go to the ribbon menu and select Review > Protect Sheet

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

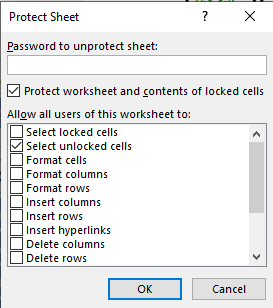

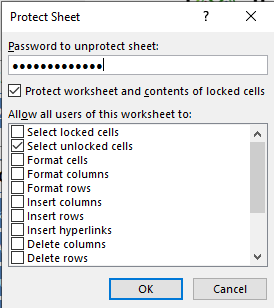

STEP 5: Uncheck” the Select Locked Cells andCheck” the Select Unlocked Cells & Use Pivot Table Reports

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline

STEP 6: Enter a password (optional) and press OK

The Ultimate Guide to Excel Pivot Table Slicers | MyExcelOnline
